| Product No： | |
|---|---|
| Product Name： | Desiccant |
Label Desiccant (DRY01)________________________________________
|
OLED device is very sensitive to the moisture, black spot will easily occur without proper encapsulation. A good encapsulation is very necessary for OLED test, including material, efficiency and life, etc. A lable desiccant inside the cover glass can absorb the diffused moisture to prevent from the formation of black spot, so that a long lifetime OLED can be made for reliable study.
|
Application :
Comparison :
OLED emission after 1-week storage
Specification:
|
Item |
Specification |
Unit |
|
Package |
100 |
pcs/pack |
|
Size |
18 x 18 |
mm2 |
|
Thickness |
180 |
um |
|
Sorption Capacity (20℃/65% RH) |
> 50 |
g/m2 |
Liquid Desiccant (DRY02)________________________________________
1.jpg/Liquid%20Desiccant%20(DRY02)1__250x165.jpg)
2.jpg)

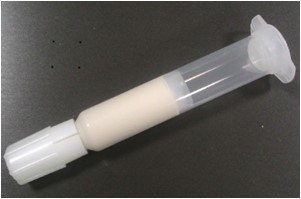

Liquid desiccant in a syringe
Liquid desiccant dispensed on cover glass.
Besides label desiccant, liquid desiccant is another choice for OLED encapsulation. A little liquid desiccant can be dispensed on the cavity of cover glass to absorb moisture, and the original OLED performance can be maintained.
Specification
|
Item |
Specification |
Unit |
|
|
Package |
10 |
g/syringe |
|
|
Curing Condition |
120/3hr or 160/1hr |
℃ |
|
|
Sorption Capacity (23℃/50% RH) |
> 16 |
wt% |
|
|
Viscosity @ a shear rate of 5s-1 |
123,000 |
cPs |
|
Thin-film Desiccant (DRY03)________________________________________
.jpg/Thin-film%20Desiccant%20(DRY03)__250x222.jpg)
Thin-film desiccant is designed for flexible OLED. Both thin-film desiccant and barrier film have to be successively attached on an OLED to prevent from the laternal diffused moisture, so that a flexible OLED can freely be demonstrated in air.
Application :
Specification:
|
Item |
Specification |
Unit |
|
Package |
5 |
pcs/pack |
|
Size |
298 x 210 |
mm2 |
|
Thickness |
95 |
μm |
|
Sorption Capacity (23℃/50% RH) |
> 20 |
g/m2 |
